OR289144

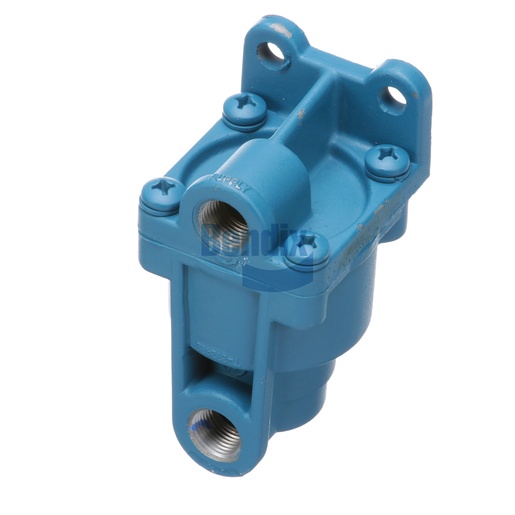

CORELESS VALVE
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Coreless Valve is designed to provide reliable performance in your vehicle's air brake system, particularly in proportioning and ratio applications. With its advanced engineering, this valve ensures optimal air distribution, promoting efficient brake application and enhancing vehicle safety. Constructed for durability, the valve operates efficiently under a wide range of temperatures, making it suitable for various commercial vehicle applications. Its straightforward installation process simplifies the maintenance of your braking system, allowing for quick and effective repairs. For those seeking high-quality Bendix OEM parts, Source One Parts Center is the premier choice, offering products that meet the rigorous standards of the commercial trucking industry.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-039: Automatic Proportioning Valve - Front Axle
Height
110.2 mm (4.34 in)
Delivery Port Orientation (CW from Mounting)
180°
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Supply Port
3/8-18 NPT
Nominal Hold-Off Pressure
4 PSI
Width
59.9 mm (2.36 in)
Nominal Equalizing Pressure (Blend Back)
60 PSI
Length
64.8 mm (2.55 in)
Harmonized System (HS) Code
848120
Application
Front / Steer Axle
Country of Origin
Mexico
Exhaust Port
Open
Mounting
Ø .34 IN (2x)
Weight
0.97 lb
