065289

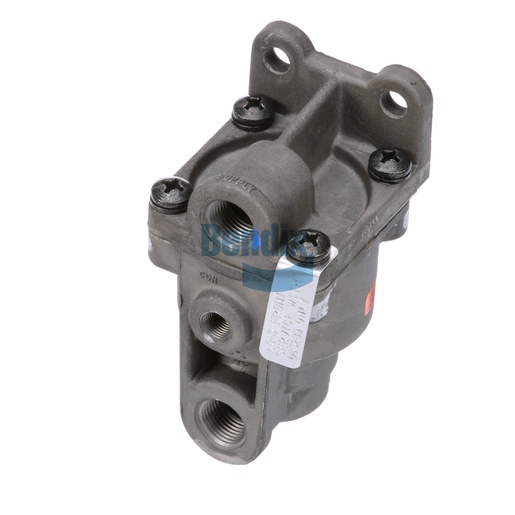

Press. Proportioning Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The pressure proportioning valve is engineered to optimize brake performance by controlling hydraulic pressure distribution between the front and rear axles. This ensures effective braking under varying load conditions, enhancing vehicle safety and stability. It operates efficiently in extreme temperatures, ranging from -40°F to 200°F, making it suitable for diverse driving conditions. With its compact design and high-quality construction, this valve is essential for maintaining optimal brake performance and extending the lifespan of your vehicle's braking system. For top-quality Bendix OEM parts that you can trust, Source One Parts Center is your best option.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-039: Automatic Proportioning Valve - Front Axle
Control Port
1/8-27 NPT
Height
110.5 mm (4.35 in)
Delivery Port Orientation (CW from Mounting)
180°
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Supply Port
3/8-18 NPT
Width
59.9 mm (2.36 in)
Length
70.1 mm (2.76 in)
Nominal Hold-Off Pressure
8 PSI
Harmonized System (HS) Code
848120
Application
Front / Rear Axle
Country of Origin
Mexico
Exhaust Port
Open
Nominal Equalizing Pressure (Blend Back)
Variable based on Control pressure (Special)
Mounting
Ø .34 IN (2x)
Weight
0.9 lb
