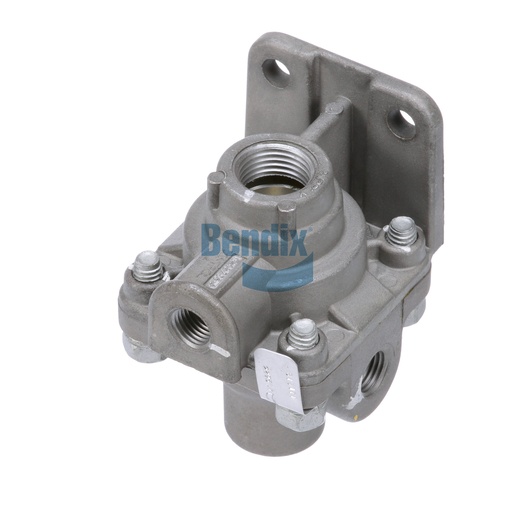

229507N
Press. Proportioning Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Pressure Proportioning Valve plays a vital role in controlling brake force distribution between the front and rear wheels, enhancing overall vehicle stability and safety. This valve is designed to respond to changes in load conditions, ensuring that your vehicle maintains optimal braking performance regardless of weight or terrain. With its maximum operating temperature of 200 °F (93 °C) and a minimum of -40 °F (-40 °C), it is built to withstand harsh environments. The valve's compact design (net weight of 0.4 kg) facilitates easy installation while ensuring long-lasting durability. This component is essential for maintaining balanced braking performance in commercial vehicles. For high-quality Bendix OEM parts, look no further than Source One Parts Center, where you will find exceptional service and genuine products.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-010: Limiter Valve - Air
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Delivery Port 1
1/4-18 NPT
Delivery Port 2
1/4-18 NPT
Height
100.6 mm (3.96 in)
Maximum Operating Temperature
200 °F (93 °C)
Limiting Ratio
50% Limited Delivery
Width
63.5 mm (2.5 in)
Length
77.2 mm (3.04 in)
Harmonized System (HS) Code
848120
Delivery Port Orientation (CW from Mounting)
90° / 270°
Country of Origin
Mexico
Exhaust Port
Open
Application
Standard
Mounting
Ø .34 IN (2x)
Weight
0.95 lb
