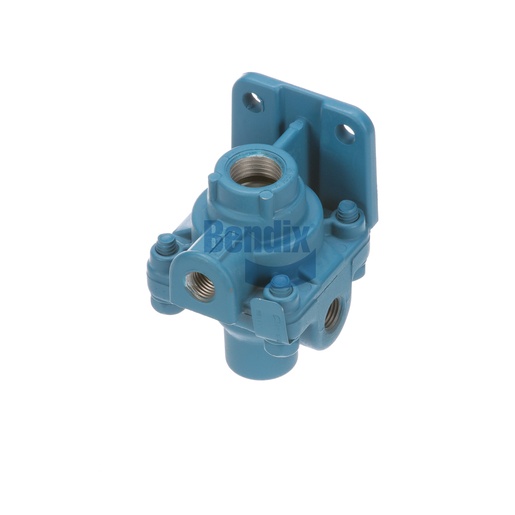

229507R
Press. Proportioning Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Pressure Proportioning Valve from Bendix is an essential component for maintaining optimal air brake performance in commercial vehicles. Designed to manage air pressure distribution effectively, this valve ensures that your braking system operates smoothly, enhancing overall safety and efficiency. With a net weight of just 0.95 pounds, it is lightweight and easy to install, making it a great choice for fleet maintenance. The valve's robust construction and precise engineering guarantee long-lasting reliability, reducing the risk of brake system failure. By investing in this part, you ensure that your vehicle remains compliant with safety regulations while maximizing braking performance. For top-quality genuine Bendix OEM parts, look no further than Source One Parts Center, where reliability is our priority.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-010: Limiter Valve - Air
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Delivery Port 1
1/4-18 NPT
Delivery Port 2
1/4-18 NPT
Height
100.6 mm (3.96 in)
Maximum Operating Temperature
200 °F (93 °C)
Limiting Ratio
50% Limited Delivery
Width
63.5 mm (2.5 in)
Length
77.2 mm (3.04 in)
Harmonized System (HS) Code
848120
Delivery Port Orientation (CW from Mounting)
90° / 270°
Country of Origin
Mexico
Exhaust Port
Open
Application
Standard
Mounting
Ø .34 IN (2x)
Weight
0.95 lb
