101647N

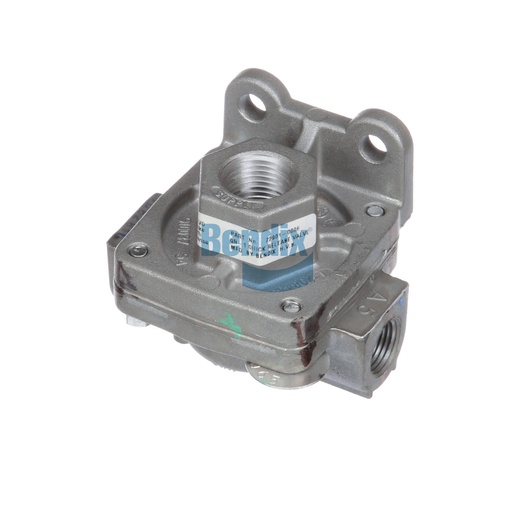

Quick Release Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Quick Release Valve is designed to enhance the efficiency and responsiveness of your vehicle's air brake system. This valve allows for rapid air release, reducing lag time during braking, which is critical for maintaining control in heavy-duty applications. Built for durability, the quick release valve can withstand harsh operating conditions while providing reliable performance. Its advanced design minimizes the risk of leaks and ensures that air pressure is maintained consistently, enhancing the overall effectiveness of your braking system. Regular maintenance and timely replacement of this valve are essential for optimal brake performance. Source One Parts Center is your premier destination for genuine Bendix OEM parts, ensuring you receive quality components tailored for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
VMRS
013-010-008: Quick Release Valve - Air Brake
Supply Port
1/2-14 NPT (Female)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT (Female)
Delivery Port 2
3/8-18 NPT (Female)
Exhaust Port
3/8-18 NPT (Female)
Differential Pressure
5 - 8 PSI
Height
63.8 mm (2.51 in)
Length
68.3 mm (2.69 in)
Width
82.3 mm (3.24 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico, India
Foam Insert Included
No
Silencer Included
No
Sustained Hold
No
Zero Hysteresis
No
TMC Washer
QR065
Mounting
Ø .34 IN (2x)
Weight
0.77 lb
