102344N

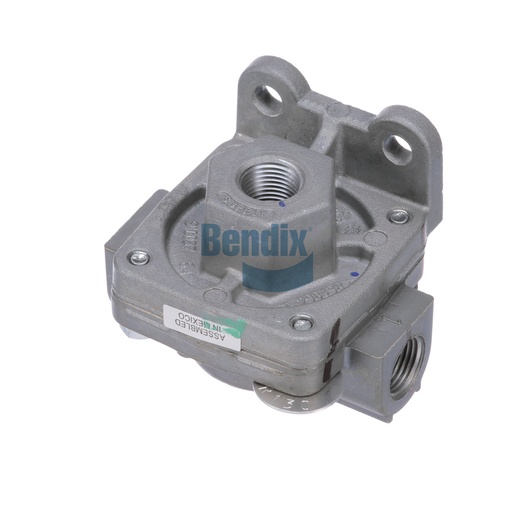

Quick Release Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Quick Release Valve is crucial for the efficient operation of air brake systems, allowing for rapid release of air pressure during braking. This high-performance valve is designed to withstand the demands of heavy-duty applications, ensuring reliable and responsive braking action. Weighing only 0.4 kg, it features precise engineering for quick activation and minimal delay. This valve is essential for maintaining optimal brake function and safety in commercial vehicles. When sourcing quality parts, Source One Parts Center is the best choice for genuine Bendix OEM components that ensure performance and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
VMRS
013-010-008: Quick Release Valve - Air Brake
Differential Pressure
10 - 16 PSI
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT (Female)
Delivery Port 2
3/8-18 NPT (Female)
Supply Port
3/8-18 NPT (Female)
Height
63.8 mm (2.51 in)
Length
68.3 mm (2.69 in)
Width
82.3 mm (3.24 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico, India
Foam Insert Included
No
Sustained Hold
No
Zero Hysteresis
No
Exhaust Port
Open
TMC Washer
QR130
Mounting
Ø .34 IN (2x)
Weight
0.77 lb
