$40.95
$49.14
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

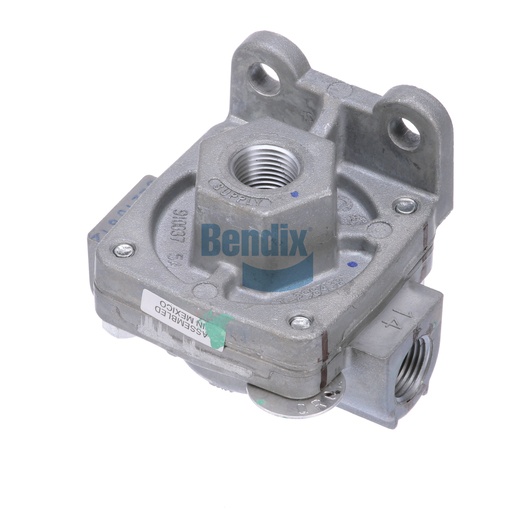

The Bendix Quick Release Valve is an integral component designed to enhance the efficiency of your vehicle's braking system. This valve provides rapid release of air pressure, ensuring quick and responsive braking performance. Weighing only 0.3 kg (0.71 lb), it is lightweight yet constructed for durability in demanding environments. With a maximum operating temperature of 200 °F (93 °C) and a minimum of -50 °F (-45 °C), this valve is built to perform reliably in various conditions. The Bendix Quick Release Valve is easy to install and integrates seamlessly into existing air brake systems, making it an essential part of your vehicle's maintenance. When sourcing genuine Bendix OEM parts, Source One Parts Center is your trusted partner, delivering high-quality components that ensure optimal performance for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
VMRS
013-010-008: Quick Release Valve - Air Brake
Differential Pressure
1 - 4 PSI
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT (Female)
Delivery Port 2
3/8-18 NPT (Female)
Supply Port
3/8-18 NPT (Female)
Height
63.8 mm (2.51 in)
Length
68.3 mm (2.69 in)
Width
82.3 mm (3.24 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico, India
Foam Insert Included
No
Sustained Hold
No
Zero Hysteresis
No
Exhaust Port
Open
TMC Washer
QR025
Mounting
Ø .34 IN (2x)
Weight
0.71 lb
