$36.95
$44.34
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

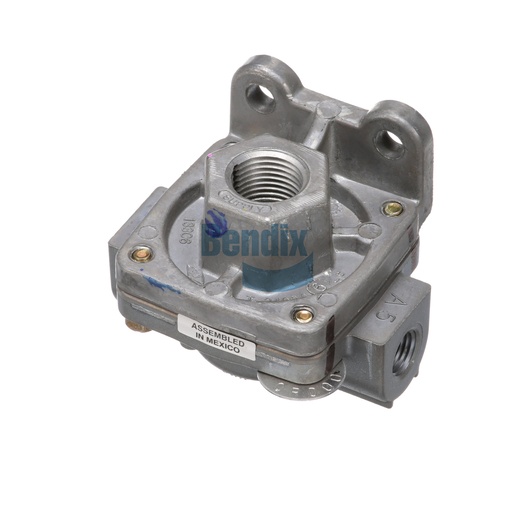

The Bendix Quick Release Valve is a vital component in the air brake system, designed to enhance the efficiency and responsiveness of brake applications. This valve allows for rapid release of air pressure, ensuring that the brakes disengage promptly when needed, which contributes to improved vehicle control and safety. Built from durable materials, the Quick Release Valve is engineered to withstand the harsh conditions typical of commercial vehicles. Regular maintenance and timely replacement of this valve are essential for optimal braking performance. For those seeking reliable and high-quality components, Source One Parts Center is the ideal choice for sourcing genuine Bendix OEM parts, ensuring your commercial vehicle performs at its best.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
Differential Pressure
0 PSI
VMRS
013-010-008: Quick Release Valve - Air Brake
Supply Port
1/2-14 NPT (Female)
Delivery Port 1
1/4-18 NPT (Female)
Delivery Port 2
1/4-18 NPT (Female)
Maximum Operating Temperature
200 °F (93 °C)
Height
63.8 mm (2.51 in)
Length
68.3 mm (2.69 in)
Width
82.3 mm (3.24 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico, India
Foam Insert Included
No
Sustained Hold
No
Exhaust Port
Open
TMC Washer
QR000
Zero Hysteresis
Yes
Mounting
Ø .34 IN (2x)
Weight
0.81 lb
