$45.95
$55.14
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

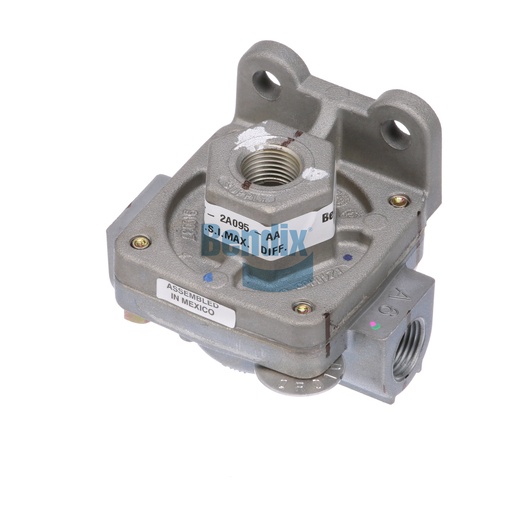

The Quick Release Valve from Bendix is designed to enhance the efficiency of air braking systems in commercial vehicles. With a compact size and lightweight design, this valve ensures rapid release of air pressure, helping to optimize brake response and improve overall safety. Featuring a mounting specification that accommodates Ø .34 inch fittings and a supply port of 3/8-18 NPT, it seamlessly integrates into existing systems. The Quick Release Valve operates effectively within a broad temperature range, with a maximum operating temperature of 200°F and a minimum of -50°F, ensuring reliable performance in diverse climates. Its zero hysteresis feature allows for accurate control, making it an essential component for any air brake system. For genuine Bendix OEM parts, look no further than Source One Parts Center, where quality meets reliability.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
VMRS
013-010-008: Quick Release Valve - Air Brake
Differential Pressure
1 PSI MAX
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT (Female)
Delivery Port 2
3/8-18 NPT (Female)
Supply Port
3/8-18 NPT (Female)
Height
63.8 mm (2.51 in)
Length
68.3 mm (2.69 in)
Width
82.3 mm (3.24 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico, India
Foam Insert Included
No
Sustained Hold
No
Zero Hysteresis
No
Exhaust Port
Open
TMC Washer
QR010
Mounting
Ø .34 IN (2x)
Weight
0.66 lb
