$44.95
$53.94

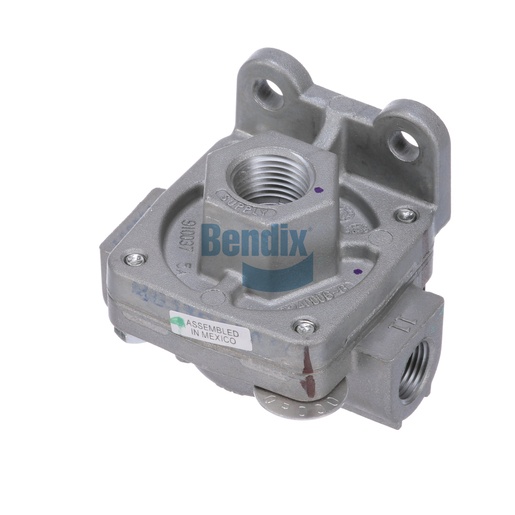

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Quick Release Valve is a vital component in the air brake system, designed to enhance the efficiency and responsiveness of braking operations. Weighing just 0.3 kg (0.64 lb), this valve allows for rapid release of air, facilitating quicker brake application and release. Its innovative design ensures minimal pressure drop, leading to improved braking performance and safety. Constructed for durability, this valve is easy to install and compatible with various air brake systems, making it a preferred choice for fleet operators. By opting for genuine Bendix parts, you ensure the highest standards of quality and reliability in your braking system. Source One Parts Center is your trusted source for authentic Bendix OEM parts, helping you maintain a safe and efficient fleet.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
Differential Pressure
0 PSI
VMRS
013-010-008: Quick Release Valve - Air Brake
Supply Port
1/2-14 NPT (Female)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT (Female)
Delivery Port 2
3/8-18 NPT (Female)
Height
63.8 mm (2.51 in)
Length
68.3 mm (2.69 in)
Width
82.3 mm (3.24 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico, India
Foam Insert Included
No
Sustained Hold
No
Exhaust Port
Open
TMC Washer
QR000
Zero Hysteresis
Yes
Mounting
Ø .34 IN (2x)
Weight
0.64 lb
