$39.95
$47.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

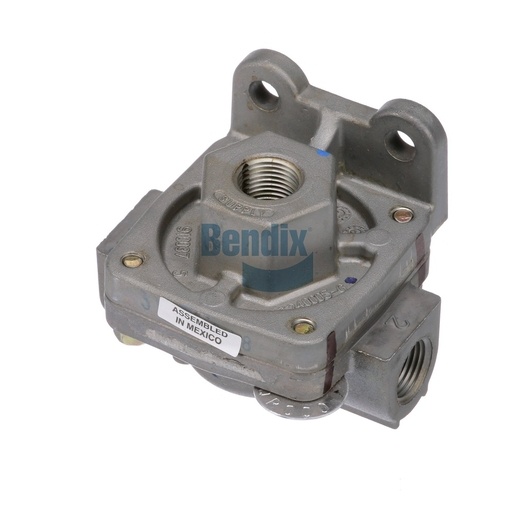

The Quick Release Valve is a vital component in the air brake system of commercial vehicles, designed by Bendix to enhance braking efficiency and responsiveness. This valve allows for rapid release of air pressure, minimizing lag during braking and ensuring that your vehicle stops quickly and safely. With a robust construction suitable for a temperature range of -50°F to 200°F, it is engineered to withstand the demanding conditions of commercial transport. The compact size and lightweight design, weighing only 0.81 lbs, facilitate easy installation in various configurations. By eliminating unnecessary pressure buildup, this valve helps maintain optimal brake function and prolongs the lifespan of your braking system. When you choose to buy Bendix parts from Source One Parts Center, you are guaranteed genuine components that meet the highest standards of quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
Differential Pressure
0 PSI
VMRS
013-010-008: Quick Release Valve - Air Brake
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT (Female)
Delivery Port 2
3/8-18 NPT (Female)
Exhaust Port
3/8-18 NPT (Female)
Supply Port
3/8-18 NPT (Female)
Height
63.8 mm (2.51 in)
Length
68.3 mm (2.69 in)
Width
82.3 mm (3.24 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico, India
Foam Insert Included
No
Silencer Included
No
Sustained Hold
No
TMC Washer
QR000
Zero Hysteresis
Yes
Mounting
Ø .34 IN (2x)
Weight
0.81 lb
