289042N

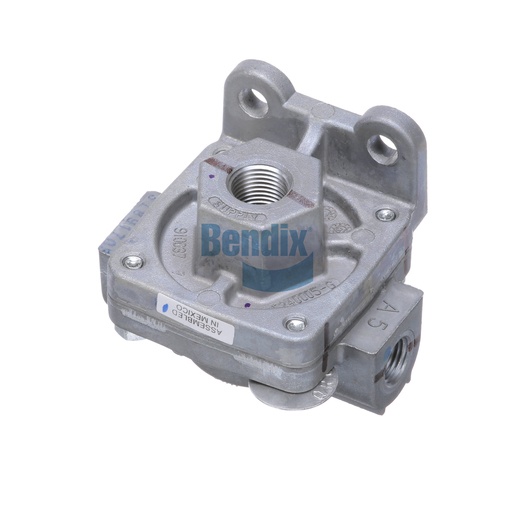

Quick Release Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Quick Release Valve from Bendix is a crucial component designed to enhance the efficiency of your vehicle's braking system. This valve allows for rapid release of air from the braking system, which is critical for achieving quick response times during braking. With a net weight of 0.4 kg, it is engineered for easy installation and reliable operation within a compact design. Regular maintenance and prompt replacement of components like the Quick Release Valve are essential for maintaining optimal braking performance and safety. For the best selection of genuine Bendix OEM parts, including this Quick Release Valve, trust Source One Parts Center as your premier source for commercial truck parts.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
VMRS
013-010-008: Quick Release Valve - Air Brake
Differential Pressure
1 PSI MAX
Delivery Port 1
1/4-18 NPT (Female)
Delivery Port 2
1/4-18 NPT (Female)
Maximum Operating Temperature
200 °F (93 °C)
Supply Port
3/8-18 NPT (Female)
Height
63.8 mm (2.51 in)
Length
68.3 mm (2.69 in)
Width
82.3 mm (3.24 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico, India
Sustained Hold
No
Zero Hysteresis
No
Exhaust Port
Open
TMC Washer
QR010
Foam Insert Included
Yes
Mounting
Ø .34 IN (2x)
Weight
0.81 lb
