$37.95
$45.54
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

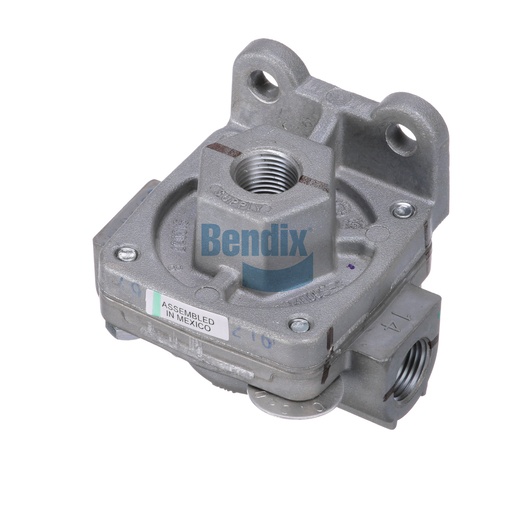

The Bendix Quick Release Valve is a critical component designed to enhance the efficiency of air brake systems in commercial vehicles. Weighing 0.4 kg and featuring a robust construction, this valve is engineered to facilitate rapid air release, which is essential for improving brake responsiveness and overall performance. It operates effectively within a temperature range of -50°F to 200°F, ensuring reliability in varying environmental conditions. The valve is designed for easy installation and comes with all necessary ports for quick integration into your braking system. By choosing this genuine Bendix part, you not only ensure a smoother braking experience but also contribute to the longevity and reliability of your truck's braking system. Source One Parts Center is dedicated to providing high-quality Bendix OEM parts, ensuring that you receive the best products for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
VMRS
013-010-008: Quick Release Valve - Air Brake
Differential Pressure
1 PSI MAX
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT (Female)
Delivery Port 2
3/8-18 NPT (Female)
Supply Port
3/8-18 NPT (Female)
Height
63.8 mm (2.51 in)
Length
68.3 mm (2.69 in)
Width
82.3 mm (3.24 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico, India
Sustained Hold
No
Zero Hysteresis
No
Exhaust Port
Open
TMC Washer
QR010
Foam Insert Included
Yes
Mounting
Ø .34 IN (2x)
Weight
0.81 lb
