5005274N

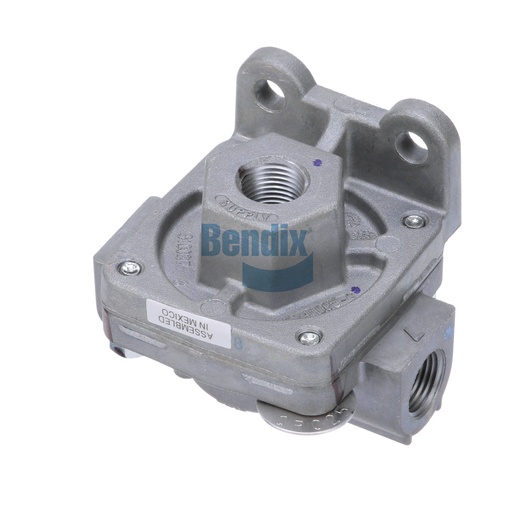

Quick Release Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Quick Release Valve is an essential part of the braking system in commercial vehicles, designed to enhance braking efficiency and response time. This valve facilitates rapid air release, ensuring quicker engagement and disengagement of the brakes, which is crucial for safety in heavy-duty operations. With a maximum operating temperature of 200°F and a minimum of -50°F, it is built to perform reliably in various environmental conditions. The valve features multiple ports for flexible installation, ensuring compatibility with various braking systems. Its compact design allows for easy integration into existing setups without taking up excessive space. The Quick Release Valve is vital for maintaining optimal braking performance, making it a necessary component for any commercial vehicle. When purchasing genuine Bendix OEM parts, Source One Parts Center is the trusted source for quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
VMRS
013-010-008: Quick Release Valve - Air Brake
Differential Pressure
1 - 4 PSI
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT (Female)
Delivery Port 2
3/8-18 NPT (Female)
Exhaust Port
3/8-18 NPT (Female)
Supply Port
3/8-18 NPT (Female)
Height
63.8 mm (2.51 in)
Length
68.3 mm (2.69 in)
Width
82.3 mm (3.24 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico, India
Foam Insert Included
No
Silencer Included
No
Sustained Hold
No
Zero Hysteresis
No
TMC Washer
QR025
Mounting
Ø .34 IN (2x)
Weight
0.71 lb
