800139

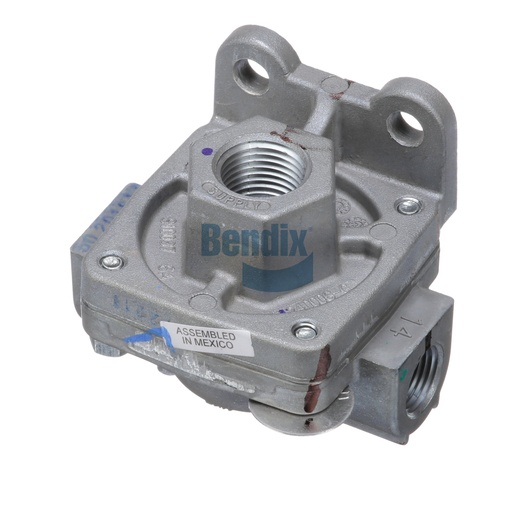

Quick Release Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Quick Release Valve is an essential part of your commercial vehicle's air brake system, designed to improve response times and overall braking efficiency. By allowing air to be quickly vented from the brake system, this valve ensures that your vehicle can stop more effectively, enhancing safety on the road. With a net weight of just 0.88 lbs, this compact valve is easy to install and integrates seamlessly into existing air brake systems. Its robust construction is built to endure the harsh conditions often faced by commercial trucks, ensuring durability and reliability over time. The valve features a supply port of 1/2-14 NPT and two delivery ports to accommodate various configurations, making it versatile for different applications. Source One Parts Center is the premier destination for genuine Bendix OEM parts, guaranteeing that you receive top-quality products for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
Differential Pressure
0 PSI
VMRS
013-010-008: Quick Release Valve - Air Brake
Supply Port
1/2-14 NPT (Female)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT (Female)
Delivery Port 2
3/8-18 NPT (Female)
Height
63.8 mm (2.51 in)
Length
68.3 mm (2.69 in)
Width
82.3 mm (3.24 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Foam Insert Included
No
Sustained Hold
No
Exhaust Port
Open
TMC Washer
QR000
Zero Hysteresis
Yes
Mounting
Ø .34 IN (2x)
Weight
0.88 lb
