801691

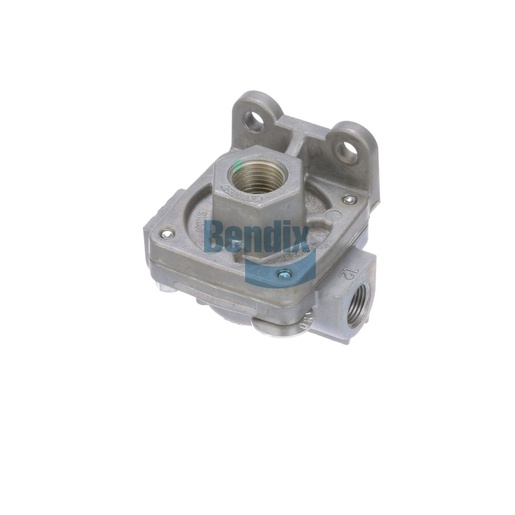

Quick Release Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Quick Release Valve from Bendix is expertly designed to enhance the responsiveness of your air brake system, providing rapid release of brake pressure when needed. This valve features a compact design with multiple ports for easy installation and optimal integration with existing systems. Its operational temperature range, from -50°F to 200°F, ensures reliable performance in various environments, making it a suitable choice for all types of commercial vehicles. The valve's zero hysteresis feature ensures that your brakes release with precision, minimizing wear on components and improving overall braking efficiency. With its durable construction, this valve is built to withstand the rigors of heavy-duty applications, ensuring that your vehicle performs at its best. Trust Source One Parts Center for your Bendix OEM parts, where quality meets performance for all your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
VMRS
013-010-008: Quick Release Valve - Air Brake
Supply Port
1/2-14 NPT (Female)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT (Female)
Delivery Port 2
3/8-18 NPT (Female)
Differential Pressure
5 - 8 PSI
Height
63.8 mm (2.51 in)
Length
68.3 mm (2.69 in)
Width
82.3 mm (3.24 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico, India
Sustained Hold
No
Zero Hysteresis
No
Exhaust Port
Open
TMC Washer
QR065
Foam Insert Included
Yes
Mounting
Ø .34 IN (2x)
Weight
0.84 lb
