801744

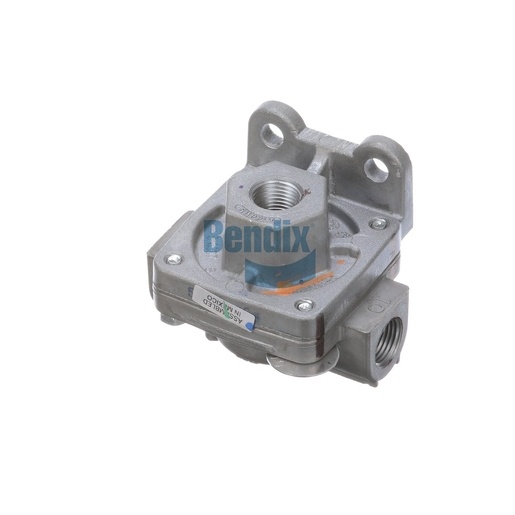

Quick Release Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Quick Release Valve is an essential part of the air brake system, designed to expedite the release of air pressure, enhancing brake responsiveness. This valve's non-adjustable design simplifies maintenance while ensuring reliable performance under a variety of conditions. With a maximum operating temperature of 200 °F, it is built to withstand the rigors of commercial trucking. Constructed with high-quality materials, this valve guarantees durability and efficiency, contributing to overall brake system reliability. When sourcing genuine Bendix parts, Source One Parts Center is your go-to destination for authentic OEM components that keep your fleet operating safely and efficiently.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
Differential Pressure
0 PSI
VMRS
013-010-008: Quick Release Valve - Air Brake
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT (Female)
Delivery Port 2
3/8-18 NPT (Female)
Exhaust Port
3/8-18 NPT (Female)
Supply Port
3/8-18 NPT (Female)
Height
63.8 mm (2.51 in)
Length
68.3 mm (2.69 in)
Width
82.3 mm (3.24 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico, India
Silencer Included
No
Sustained Hold
No
TMC Washer
QR000
Foam Insert Included
Yes
Zero Hysteresis
Yes
Mounting
Ø .34 IN (2x)
Weight
0.75 lb
