$32.95
$39.54
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

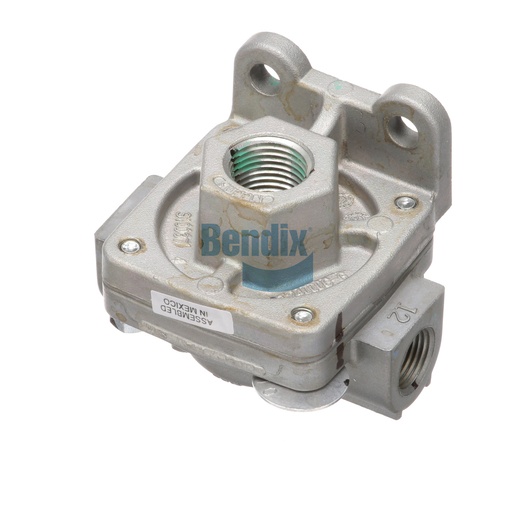

The Bendix Quick Release Valve is an essential component designed to improve the efficiency of your vehicle's braking system by allowing for rapid release of air from the brake lines. This valve is engineered to provide quick and responsive braking performance, which is crucial for heavy-duty applications where every second counts. Featuring a durable construction that ensures reliability, this valve is capable of operating effectively in extreme temperatures ranging from -50 °F to 200 °F. Its compact size allows for easy installation and integration into existing braking systems, making it a preferred choice for fleet operators. The valve's design also includes ports for easy connection to the air supply and delivery lines, ensuring a streamlined setup. For those looking for genuine Bendix OEM parts, Source One Parts Center is the best place to find high-quality components that meet the rigorous demands of commercial vehicle operation.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
VMRS
013-010-008: Quick Release Valve - Air Brake
Differential Pressure
1 PSI MAX
Exhaust Port
1/2-14 NPT (Female)
Supply Port
1/2-14 NPT (Female)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT (Female)
Delivery Port 2
3/8-18 NPT (Female)
Height
63.8 mm (2.51 in)
Length
68.3 mm (2.69 in)
Width
82.3 mm (3.24 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico, India
Foam Insert Included
No
Silencer Included
No
Sustained Hold
No
Zero Hysteresis
No
TMC Washer
QR010
Mounting
Ø .34 IN (2x)
Weight
0.81 lb
