K026426
Quick Release Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

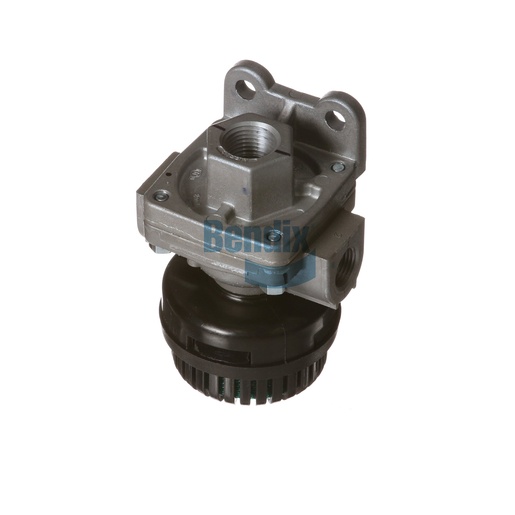

This quick release valve is a vital component for ensuring the efficiency of your air brake system in commercial vehicles. Designed to reduce the delay in air release, it enhances the responsiveness of your brakes, making it essential for safety in high-demand situations. Weighing just 0.4 kg (0.81 lb), this compact valve is engineered from durable materials, ensuring long-lasting performance under various conditions. Its precise engineering guarantees optimal airflow, contributing to the overall efficiency of your braking system. For the best selection of Bendix OEM parts, Source One Parts Center is your trusted source, providing quality components for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
VMRS
013-010-008: Quick Release Valve - Air Brake
Differential Pressure
1 PSI MAX
Supply Port
1/2-14 NPT (Female)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT (Female)
Delivery Port 2
3/8-18 NPT (Female)
Height
63.8 mm (2.51 in)
Length
68.3 mm (2.69 in)
Width
82.3 mm (3.24 in)
Harmonized System (HS) Code
848120
Exhaust Port
M22 x 1.5-6H (with Silencer)
Country of Origin
Mexico
Sustained Hold
No
Zero Hysteresis
No
TMC Washer
QR010
Foam Insert Included
Yes
Silencer Included
Yes
Mounting
Ø .34 IN (2x)
Weight
0.81 lb
