$33.95
$40.74
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

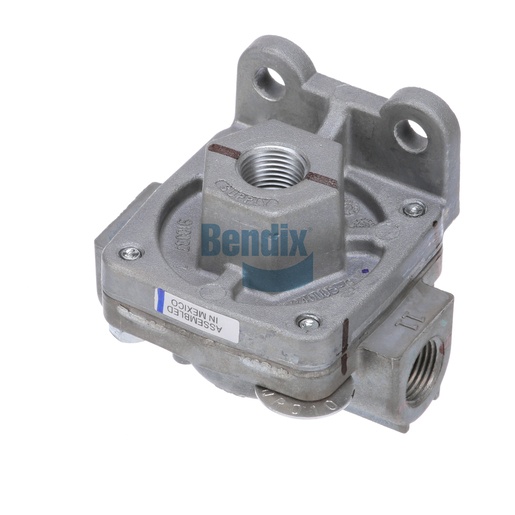

The Bendix Quick Release Valve is an essential component for efficient air brake systems, facilitating rapid release of air pressure to enhance braking response. This valve is compact, measuring 3.24 inches in width and 2.69 inches in length, making it ideal for various commercial vehicle applications. With a maximum operating temperature of 200 °F, it is designed to endure extreme conditions, ensuring consistent performance. The valve features multiple ports, including a delivery port that allows for effective management of air supply, significantly improving braking efficiency. Additionally, its lightweight design (0.75 lbs) ensures easy installation and maintenance. For genuine Bendix OEM parts that guarantee reliability and performance, look no further than Source One Parts Center, your trusted partner in commercial vehicle maintenance.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
VMRS
013-010-008: Quick Release Valve - Air Brake
Differential Pressure
1 PSI MAX
Exhaust Port
1/2-14 NPT (Female)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT (Female)
Delivery Port 2
3/8-18 NPT (Female)
Supply Port
3/8-18 NPT (Female)
Height
63.8 mm (2.51 in)
Length
68.3 mm (2.69 in)
Width
82.3 mm (3.24 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Foam Insert Included
No
Silencer Included
No
Sustained Hold
No
Zero Hysteresis
No
TMC Washer
QR010
Mounting
Ø .34 IN (2x)
Weight
0.75 lb
