OR229813

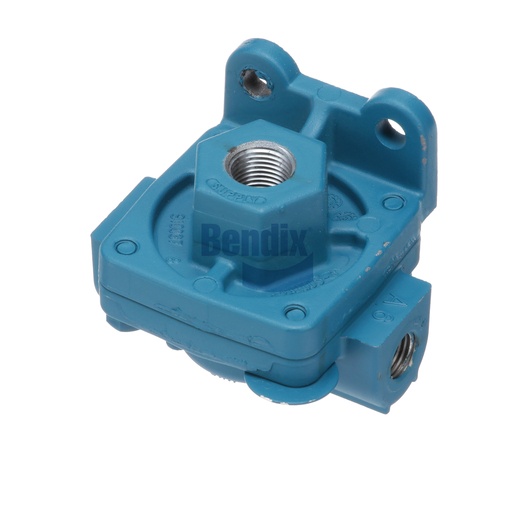

CORELESS VALVE
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Coreless Valve is a state-of-the-art solution for managing air brake systems in commercial vehicles. This valve is designed to provide efficient air release and is ideal for use in various applications, enhancing the overall performance of your braking system. With a compact design and lightweight construction, it is easy to install and integrates seamlessly into existing systems. The valve operates effectively under a wide range of temperatures, ensuring reliability and functionality in all conditions. For those seeking genuine Bendix OEM parts, Source One Parts Center is the best choice, offering high-quality components that boost your vehicle’s performance.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
Differential Pressure
0 PSI
VMRS
013-010-008: Quick Release Valve - Air Brake
Delivery Port 1
1/4-18 NPT (Female)
Delivery Port 2
1/4-18 NPT (Female)
Maximum Operating Temperature
200 °F (93 °C)
Supply Port
3/8-18 NPT (Female)
Height
63.8 mm (2.51 in)
Length
68.3 mm (2.69 in)
Width
82.3 mm (3.24 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Foam Insert Included
No
Sustained Hold
No
Exhaust Port
Open
TMC Washer
QR000
Zero Hysteresis
Yes
Mounting
Ø .34 IN (2x)
Weight
0.73 lb
