OR229844

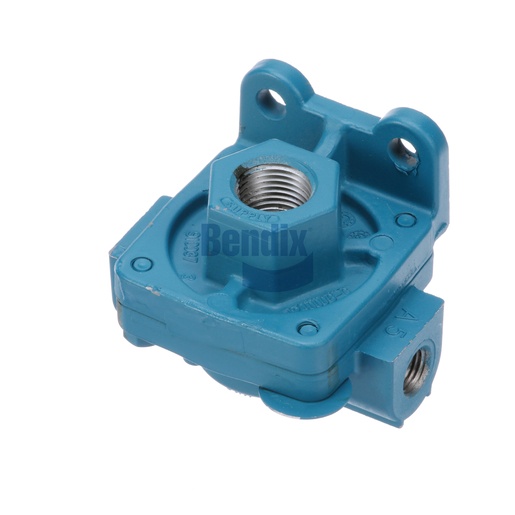

CORELESS VALVE
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Coreless Valve is an essential component for managing air pressure in your vehicle's braking system. Designed with precision engineering, this valve ensures quick response times and reliable operation, enhancing overall braking efficiency. Its compact design allows for easy installation, making it an ideal choice for both new builds and repairs. Built to withstand the rigors of heavy-duty applications, this valve contributes to safer driving conditions by maintaining optimal pressure levels. For sourcing genuine Bendix OEM parts, Source One Parts Center is the best option, providing quality products and exceptional customer support.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
Differential Pressure
0 PSI
VMRS
013-010-008: Quick Release Valve - Air Brake
Supply Port
1/2-14 NPT (Female)
Delivery Port 1
1/4-18 NPT (Female)
Delivery Port 2
1/4-18 NPT (Female)
Maximum Operating Temperature
200 °F (93 °C)
Height
63.8 mm (2.51 in)
Length
68.3 mm (2.69 in)
Width
82.3 mm (3.24 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Foam Insert Included
No
Sustained Hold
No
Exhaust Port
Open
TMC Washer
QR000
Zero Hysteresis
Yes
Mounting
Ø .34 IN (2x)
Weight
0.79 lb
