101487N

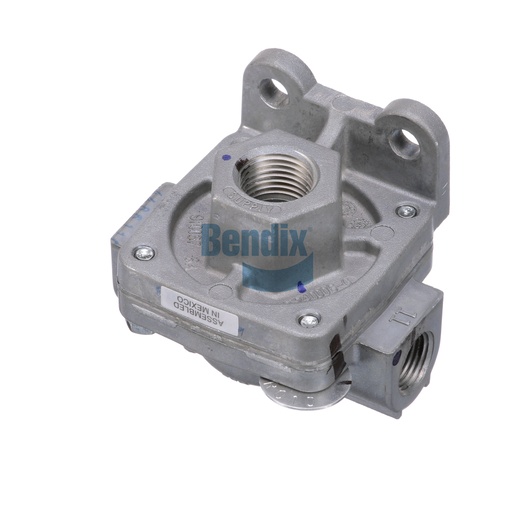

Quick Release Valve
Bendix
DISCONTINUED
0 are currently available
Ships within 1 business day
$49.95
$59.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Quick Release Valve is an essential component in your vehicle's air brake system, designed to enhance responsiveness and efficiency during braking operations. This valve facilitates rapid release of air pressure, allowing for quicker brake engagement and disengagement, which is crucial for maintaining control and safety while driving. Its robust construction ensures durability, making it suitable for the demands of commercial use. Weighing only 0.3 kg, it is lightweight yet powerful, ensuring seamless integration into your existing air brake system. For the best in quality and performance, Source One Parts Center is the go-to destination for genuine Bendix OEM parts that guarantee reliability and safety for your vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
VMRS
013-010-008: Quick Release Valve - Air Brake
Differential Pressure
1 PSI MAX
Supply Port
1/2-14 NPT (Female)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT (Female)
Delivery Port 2
3/8-18 NPT (Female)
Height
65.0 mm (2.56 in)
Width
71.0 mm (2.8 in)
Length
82.0 mm (3.23 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Sustained Hold
No
Zero Hysteresis
No
Exhaust Port
Open
TMC Washer
QR010
Foam Insert Included
Yes
Mounting
Ø .34 IN (2x)
Weight
0.68 lb
