107881N

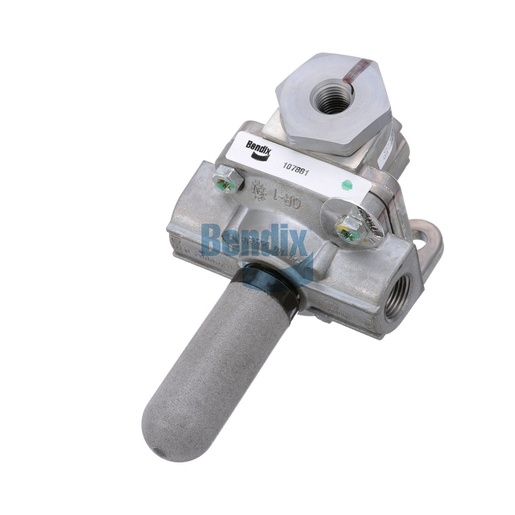

Quick Release Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Quick Release Valve is a crucial component for any air brake system, designed to enhance system responsiveness and efficiency. Featuring a lightweight design with a net weight of just 0.4 kg, this quick release valve ensures rapid air release, minimizing lag time during braking operations. Its robust construction allows it to withstand the demanding environments typical of commercial vehicles, ensuring reliable performance over time. With ports designed for easy installation and compatibility with standard air brake systems, this valve simplifies maintenance and enhances overall braking effectiveness. The quick release feature significantly improves brake responsiveness, making it an essential part for any fleet manager looking to maintain optimal safety and performance. For those seeking authentic Bendix products, Source One Parts Center is the ultimate destination, providing a comprehensive range of OEM parts and exceptional customer support.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
Differential Pressure
0 PSI
VMRS
013-010-008: Quick Release Valve - Air Brake
Exhaust Port
1/2-14 NPT (Adapter / Silencer)
Balance Port
1/4-18 NPT (Female)
Supply Port
1/4-18 NPT (Female)
Height
119.6 mm (4.71 in)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT (Female)
Delivery Port 2
3/8-18 NPT (Female)
Length
80.0 mm (3.15 in)
Width
82.3 mm (3.24 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Foam Insert Included
No
Sustained Hold
No
TMC Washer
QR000
Silencer Included
Yes
Zero Hysteresis
Yes
Mounting
Ø .34 IN (2x)
Weight
0.84 lb
