$104.95
$125.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

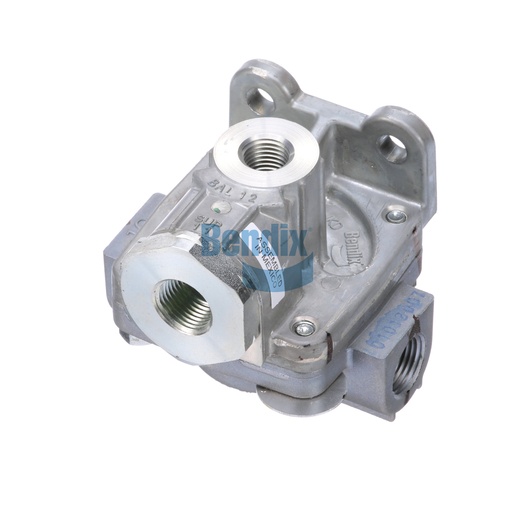

The Bendix Quick Release Valve is designed to enhance the efficiency of your vehicle's air brake system by providing fast and reliable air release. This valve is critical for maintaining optimal brake performance, allowing for quicker response times when the brakes are released. Weighing just 0.5 kg (1.08 lb), this valve is built to withstand high pressure and harsh operating conditions, ensuring longevity and reliability. Its compact design makes it easy to install in various heavy-duty applications, contributing to the overall safety and performance of your commercial vehicle. For the best in quality and performance, Source One Parts Center is the premier choice for purchasing genuine Bendix OEM parts for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
VMRS
013-010-008: Quick Release Valve - Air Brake
Balance Port
1/4-18 NPT (Female)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT (Female)
Delivery Port 2
3/8-18 NPT (Female)
Supply Port
3/8-18 NPT (Female)
Differential Pressure
5 - 8 PSI
Height
69.1 mm (2.72 in)
Length
79.0 mm (3.11 in)
Width
82.3 mm (3.24 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico, India
Foam Insert Included
No
Sustained Hold
No
Zero Hysteresis
No
Exhaust Port
Open
TMC Washer
QR065
Mounting
Ø .34 IN (2x)
Weight
1.08 lb
