281024N

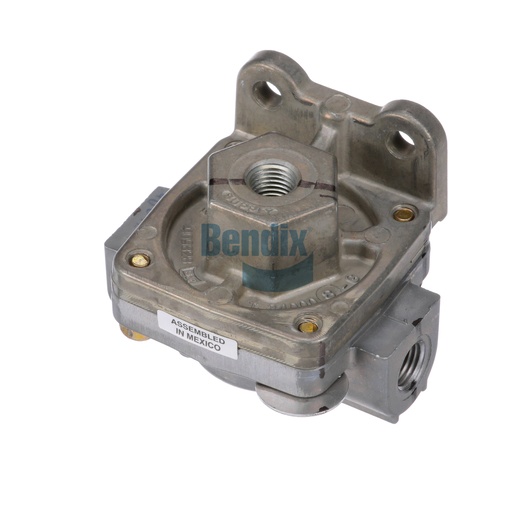

Quick Release Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Quick Release Valve is an essential component in the air brake system of commercial vehicles, designed by Bendix to optimize braking efficiency and responsiveness. This valve facilitates rapid air release, ensuring that your braking system functions with minimal delay, which is crucial for maintaining safety and performance under heavy loads. Engineered for robust performance, it operates effectively in extreme temperature conditions, from -50°F to 200°F, ensuring reliability in various climates. The Quick Release Valve's design allows for easy installation and compatibility with a range of air brake systems, making it a practical choice for fleet maintenance. By choosing Source One Parts Center for your Bendix OEM parts, you ensure that you receive high-quality components that enhance your vehicle's safety and performance, minimizing downtime and maintaining operational efficiency.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
Differential Pressure
0 PSI
VMRS
013-010-008: Quick Release Valve - Air Brake
Delivery Port 1
1/4-18 NPT (Female)
Delivery Port 2
1/4-18 NPT (Female)
Supply Port
1/4-18 NPT (Female)
Maximum Operating Temperature
200 °F (93 °C)
Height
65.0 mm (2.56 in)
Width
71.0 mm (2.8 in)
Length
82.0 mm (3.23 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Foam Insert Included
No
Sustained Hold
No
Exhaust Port
Open
TMC Washer
QR000
Zero Hysteresis
Yes
Mounting
Ø .34 IN (2x)
Weight
0.68 lb
