$92.95
$111.54
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

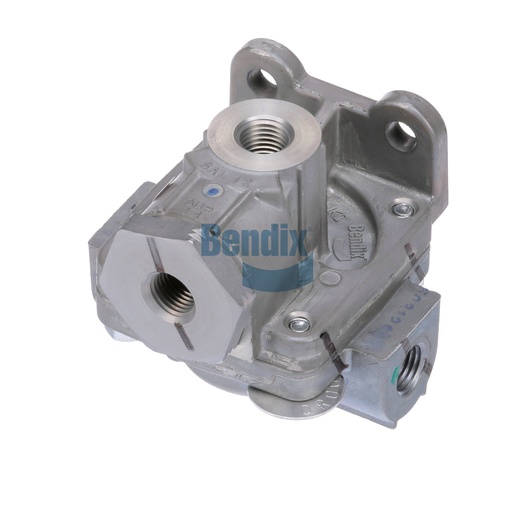

The Quick Release Valve from Bendix is a pivotal component designed to enhance the responsiveness of your air brake system. By allowing for rapid air release, this valve significantly improves the braking performance of your commercial vehicle, especially in emergency situations. With a maximum operating temperature of 200°F and a minimum of -50°F, it is built to perform under a variety of environmental conditions, ensuring reliability when you need it the most. The valve's compact dimensions and lightweight design facilitate easy installation, making it a practical choice for fleet maintenance. With a durable construction that stands up to rigorous use, this Quick Release Valve is essential for maintaining optimal brake function. For genuine Bendix OEM parts, Source One Parts Center is the best choice, offering high-quality components that ensure your vehicles operate safely and efficiently.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
Differential Pressure
0 PSI
VMRS
013-010-008: Quick Release Valve - Air Brake
Balance Port
1/4-18 NPT (Female)
Delivery Port 1
1/4-18 NPT (Female)
Delivery Port 2
1/4-18 NPT (Female)
Supply Port
1/4-18 NPT (Female)
Maximum Operating Temperature
200 °F (93 °C)
Height
69.1 mm (2.72 in)
Length
80.0 mm (3.15 in)
Width
82.3 mm (3.24 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Foam Insert Included
No
Sustained Hold
No
Exhaust Port
Open
TMC Washer
QR000
Zero Hysteresis
Yes
Mounting
Ø .34 IN (2x)
Weight
1.17 lb
