$88.95
$106.74
FINAL SALE. No returns or exchanges.

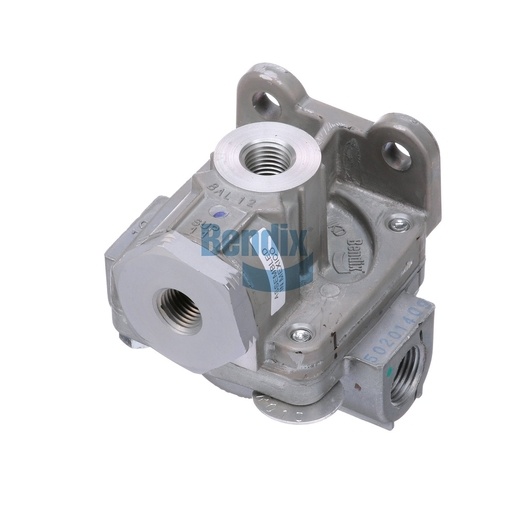

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Quick Release Valve is a crucial component in your truck's air brake system, designed to enhance the responsiveness and efficiency of the braking process. This valve allows for rapid release of air pressure, ensuring that your brakes disengage quickly and reliably when needed. Constructed with high-quality materials, it is built to withstand the demanding conditions of commercial vehicle operation. Its lightweight design, weighing only 0.5 kg (1.05 lb), makes installation straightforward while ensuring robust performance. The valve's efficient design minimizes lag time, promoting better control and safety during braking maneuvers. For those in need of genuine Bendix OEM parts, Source One Parts Center is the ideal choice, providing reliable components to keep your vehicle performing at its best.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
VMRS
013-010-008: Quick Release Valve - Air Brake
Differential Pressure
1 PSI MAX
Balance Port
1/4-18 NPT (Female)
Supply Port
1/4-18 NPT (Female)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT (Female)
Delivery Port 2
3/8-18 NPT (Female)
Height
69.1 mm (2.72 in)
Length
80.0 mm (3.15 in)
Width
82.3 mm (3.24 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico, India
Foam Insert Included
No
Sustained Hold
No
Zero Hysteresis
No
Exhaust Port
Open
TMC Washer
QR010
Mounting
Ø .34 IN (2x)
Weight
1.05 lb
