5009069

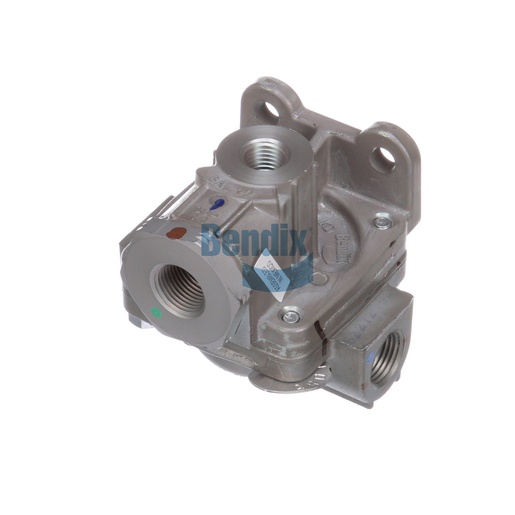

Quick Release Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Quick Release Valve is a small but essential component in the air brake system, facilitating quick and effective air release for enhanced braking performance. Weighing 0.5 kg (1.04 lb), this valve is designed to minimize air pressure loss, ensuring that your brakes respond promptly when needed. Its robust construction makes it suitable for various commercial vehicle applications, providing reliability and efficiency. The straightforward installation process allows for quick replacements, making it a practical choice for fleet maintenance. By choosing genuine Bendix parts, you ensure your air brake system operates at peak performance, contributing to overall safety on the road. Source One Parts Center is the go-to destination for authentic Bendix OEM parts, guaranteeing quality and performance for your fleet.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
VMRS
013-010-008: Quick Release Valve - Air Brake
Differential Pressure
1 PSI MAX
Balance Port
1/4-18 NPT (Female)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT (Female)
Delivery Port 2
3/8-18 NPT (Female)
Supply Port
3/8-18 NPT (Female)
Height
69.0 mm (2.72 in)
Width
80.0 mm (3.15 in)
Length
82.0 mm (3.23 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Foam Insert Included
No
Sustained Hold
No
Zero Hysteresis
No
Exhaust Port
Open
TMC Washer
QR010
Mounting
Ø .34 IN (2x)
Weight
1.04 lb
