800143

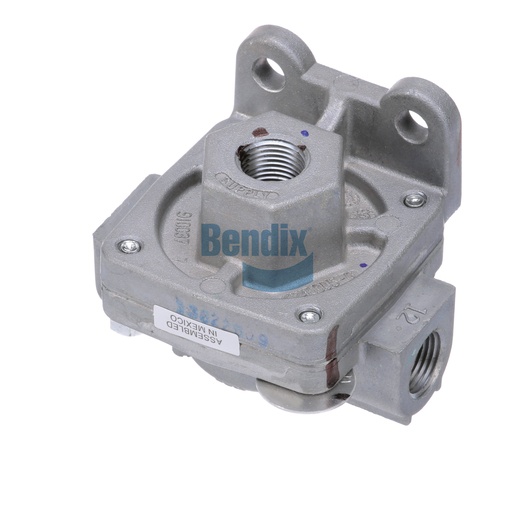

Quick Release Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Quick Release Valve from Bendix is engineered to enhance the performance of your air brake system by providing rapid release of compressed air, allowing for immediate brake release during operation. This valve is constructed to meet rigorous standards, ensuring reliability and efficiency in diverse operating conditions. Its compact design enables easy installation and maintenance, making it a favorite among fleet operators. The Quick Release Valve's performance directly contributes to the safety and responsiveness of the vehicle's braking system, making it a critical component for commercial trucks. For quality and reliability in replacement parts, Source One Parts Center is your best option for genuine Bendix OEM components that ensure your vehicle remains road-ready.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
Differential Pressure
0 PSI
VMRS
013-010-008: Quick Release Valve - Air Brake
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT (Female)
Delivery Port 2
3/8-18 NPT (Female)
Supply Port
3/8-18 NPT (Female)
Height
63.8 mm (2.51 in)
Length
68.3 mm (2.69 in)
Width
82.3 mm (3.24 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Foam Insert Included
No
Sustained Hold
No
Exhaust Port
Open
TMC Washer
QR000
Zero Hysteresis
Yes
Mounting
Ø .34 IN (2x)
Weight
0.68 lb
