800539

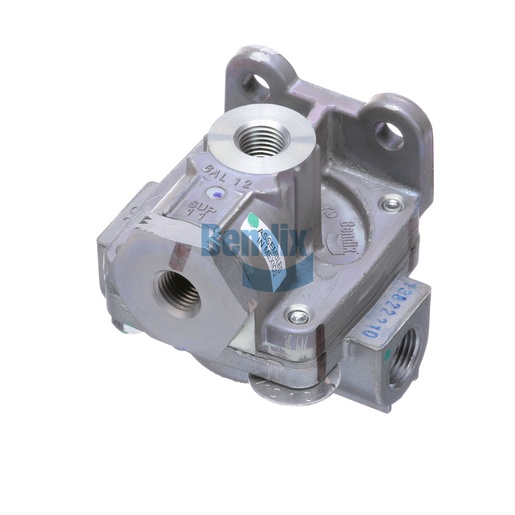

Quick Release Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix quick release valve is an essential component of your vehicle's air brake system, designed to enhance braking responsiveness by quickly releasing air pressure from the brake chambers. This valve plays a crucial role in ensuring that your brakes operate smoothly and efficiently, contributing to improved safety and performance. With a compact design and weighing just 1.06 pounds, it is easy to install and fits seamlessly into various braking systems. The quick release valve is engineered to minimize delays in brake application and release, allowing for quicker stops and enhanced overall control of your vehicle. Choosing this genuine Bendix part ensures the reliability and efficiency of your braking system. Source One Parts Center is the ultimate destination for sourcing authentic Bendix OEM parts, providing you with the assurance of quality and performance.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
VMRS
013-010-008: Quick Release Valve - Air Brake
Differential Pressure
1 PSI MAX
Balance Port
1/4-18 NPT (Female)
Supply Port
1/4-18 NPT (Female)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT (Female)
Delivery Port 2
3/8-18 NPT (Female)
Harmonized System (HS) Code
848120
Sustained Hold
No
Zero Hysteresis
No
Exhaust Port
Open
TMC Washer
QR010
Country of Origin
United States
Foam Insert Included
Yes
Mounting
Ø .34 IN (2x)
Weight
1.06 lb
