K038533
Quick Release Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

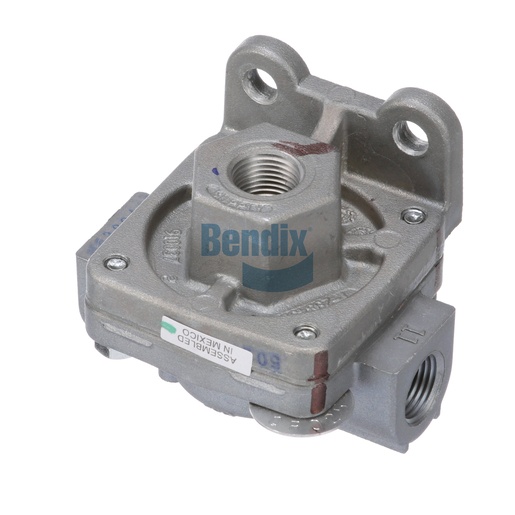

The Bendix Quick Release Valve is a vital component in the air brake system, ensuring rapid release of air pressure for improved braking efficiency. Engineered for reliability, this valve features a robust construction that can withstand extreme conditions, making it essential for commercial vehicle applications. With a net weight of 0.3 kg, it is designed for easy installation and maintenance. This valve helps to enhance vehicle safety by providing quicker response times during braking, ultimately improving overall driving performance. For sourcing genuine Bendix OEM parts, Source One Parts Center is your go-to destination for quality and service.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
VMRS
013-010-008: Quick Release Valve - Air Brake
Differential Pressure
1 - 4 PSI
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT (Female)
Delivery Port 2
3/8-18 NPT (Female)
Supply Port
3/8-18 NPT (Female)
Height
65.0 mm (2.56 in)
Width
71.0 mm (2.8 in)
Length
82.0 mm (3.23 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Foam Insert Included
No
Sustained Hold
No
Zero Hysteresis
No
Exhaust Port
Open
TMC Washer
QR025
Mounting
Ø .34 IN (2x)
Weight
0.77 lb
