$46.95
$56.34
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

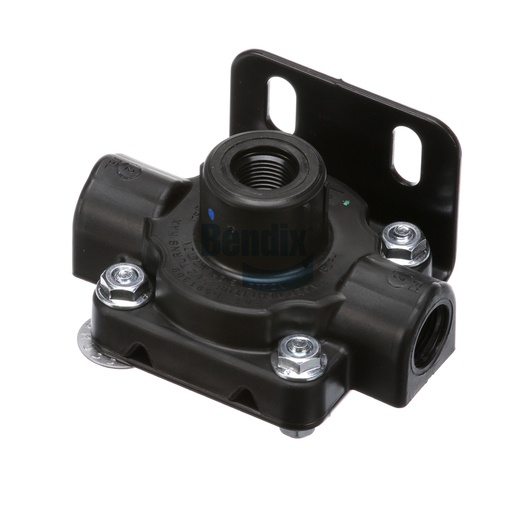

The Quick Release Valve from Bendix is an essential component designed to enhance the efficiency of your air brake system. This valve plays a critical role in quickly releasing air from the brake system, which improves responsiveness and reduces brake lag, ensuring safer and more efficient operation. With a robust design featuring multiple ports for flexible installation, it can handle various configurations across different vehicle types. The valve is engineered to operate effectively within a wide temperature range, with a maximum operating temperature of 200°F. Its lightweight design of just 0.4 kg facilitates easy handling during installation and maintenance. Built in Mexico, this valve adheres to high manufacturing standards, ensuring reliability on the road. For the best selection of genuine Bendix OEM parts, Source One Parts Center is the ideal choice, providing high-quality components tailored for commercial vehicles.
SPECIFICATIONS
Mounting
.34 IN X .75 IN Slot (2x)
VMRS
013-010-008: Quick Release Valve - Air Brake
Width
101.6 mm (4.0 in)
Differential Pressure
2 - 4.5 PSI
Delivery Port 1
3/8-18 NPT (Female)
Delivery Port 2
3/8-18 NPT (Female)
Supply Port
3/8-18 NPT (Female)
Height
58.2 mm (2.29 in)
Length
76.7 mm (3.02 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Zero Hysteresis
No
Exhaust Port
Open
TMC Washer
QR033
Sustained Hold
Yes
Weight
0.87 lb
