$46.95
$56.34
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

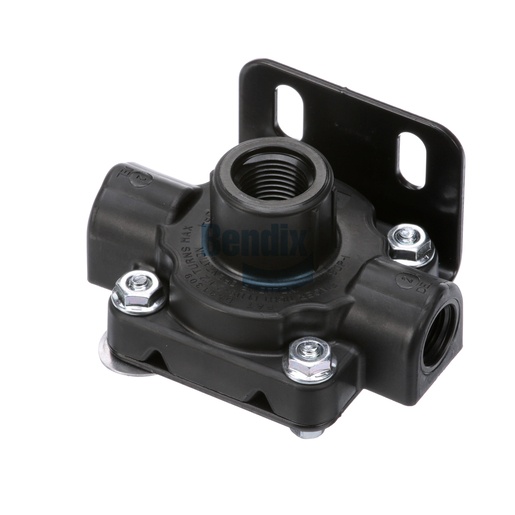

The Bendix Quick Release Valve is a vital component in maintaining the efficiency of your vehicle's braking system. Weighing just 0.4 kg (0.9 lb), this valve is designed to facilitate rapid release of air pressure, ensuring quick response times during braking operations. Its durable construction makes it suitable for a variety of commercial vehicle applications, enhancing overall braking performance and safety. The quick release valve is essential for preventing brake lag and ensuring that your vehicle stops effectively and safely. Regular inspections and timely replacement are key to maintaining optimal brake performance. For high-quality genuine Bendix OEM parts, Source One Parts Center is the top choice, ensuring your commercial vehicles remain safe and efficient on the road.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
Mounting
.34 IN X .75 IN Slot (2x)
VMRS
013-010-008: Quick Release Valve - Air Brake
Supply Port
1/2-14 NPT (Female)
Width
101.6 mm (4.0 in)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT (Female)
Delivery Port 2
3/8-18 NPT (Female)
Differential Pressure
4.5 - 7.5 PSI
Height
58.2 mm (2.29 in)
Length
76.7 mm (3.02 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Zero Hysteresis
No
Exhaust Port
Open
TMC Washer
QR060
Sustained Hold
Yes
Weight
0.9 lb
