$50.95
$61.14
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

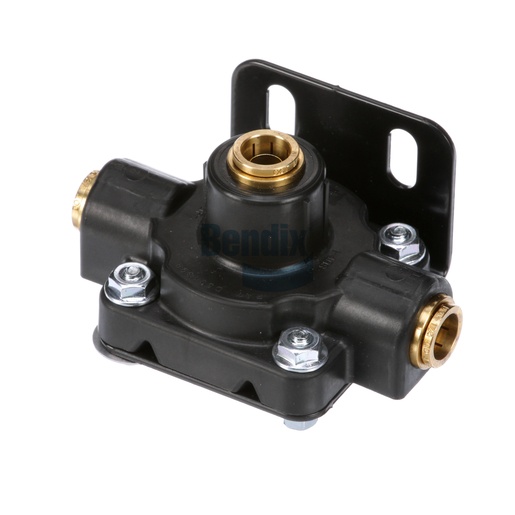

The Quick Release Valve from Bendix plays a crucial role in optimizing the performance of your vehicle's air brake system. Designed for efficiency, this valve allows for rapid release of air pressure, ensuring that your brakes respond quickly and effectively when needed. Its robust construction and precision engineering guarantee reliable operation, making it suitable for various heavy-duty applications. The valve features dual delivery ports and is equipped with a soft seat purge valve, enhancing its functionality while reducing the risk of leaks. Easy to install, this quick release valve is essential for maintaining optimal brake performance and safety. When searching for genuine Bendix OEM parts, Source One Parts Center is the best choice to ensure you receive top-quality components for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
Mounting
.34 IN X .75 IN Slot (2x)
Differential Pressure
0 PSI
VMRS
013-010-008: Quick Release Valve - Air Brake
Delivery Port 1
1/2 PTC (Straight)
Delivery Port 2
1/2 PTC (Straight)
Supply Port
1/2 PTC (Straight)
Width
110.7 mm (4.36 in)
Maximum Operating Temperature
200 °F (93 °C)
Height
62.7 mm (2.47 in)
Length
76.7 mm (3.02 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Exhaust Port
Open
TMC Washer
QR000
Sustained Hold
Yes
Zero Hysteresis
Yes
Weight
0.96 lb
