$17.95
$21.54
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

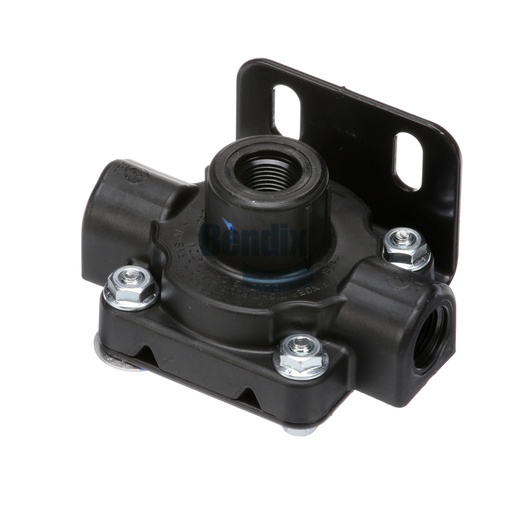

The Bendix Quick Release Valve is a vital component that enhances the efficiency of your vehicle's air brake system. Designed to facilitate rapid release of air pressure, this valve improves braking response time, ensuring safer operation of commercial vehicles. Its robust construction is built to withstand harsh conditions, providing reliable performance under heavy loads. The valve's compact design allows for easy installation, making it a practical choice for fleet managers and operators. When you choose Source One Parts Center, you can trust that you are purchasing genuine Bendix parts that deliver outstanding quality and performance.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
Mounting
.34 IN X .75 IN Slot (2x)
Differential Pressure
0 PSI
VMRS
013-010-008: Quick Release Valve - Air Brake
Width
101.6 mm (4.0 in)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT (Female)
Delivery Port 2
3/8-18 NPT (Female)
Supply Port
3/8-18 NPT (Female)
Height
58.2 mm (2.29 in)
Length
76.7 mm (3.02 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Exhaust Port
Open
TMC Washer
QR000
Sustained Hold
Yes
Zero Hysteresis
Yes
Weight
0.9 lb
