$389.95
$467.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

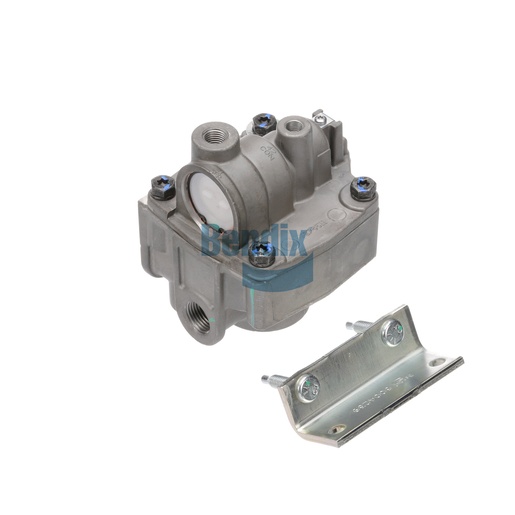

The Bendix Pressure Proportioning Valve is a key component in ensuring balanced braking performance in commercial vehicles. This valve is designed to regulate brake pressure effectively, providing optimized control and safety during operation. With a compact design and weighing just 3.21 lbs, it is easy to install, making it a practical choice for fleet maintenance. The valve features multiple ports for versatile configurations, allowing it to adapt to various braking systems. Engineered for high performance, it can withstand extreme temperatures, ensuring reliability in all conditions. For those looking to enhance their vehicle’s braking system, this valve is an excellent choice. When you need genuine Bendix OEM parts, Source One Parts Center is the top destination, offering a wide selection of quality components that guarantee optimal performance and safety.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-476: Proportioning Valve - Bobtail
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Service Port
1/4-18 NPT
Control Port
1/8-27 NPT
Width
101.1 mm (3.98 in)
Length
113.8 mm (4.48 in)
Height
137.4 mm (5.41 in)
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
4.0 PSI
Mounting
5/16-18 UNC-2A (2x)
Harmonized System (HS) Code
848120
Mounting Bracket Direction
Bracket loose in box
Mounting Bracket Location
Bracket loose in box
Mounting Orientation (CW from Front Face)
Bracket loose in box
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV040
Weight
3.21 lb
