$114.95
$137.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

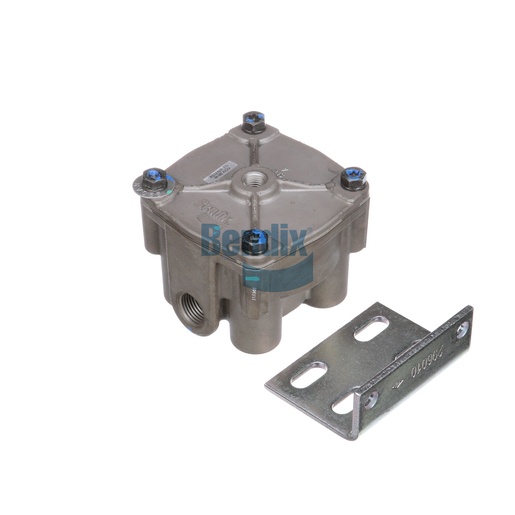

The Bendix Relay Valve is designed to enhance the efficiency and reliability of your vehicle's air brake system. This valve plays a crucial role in controlling air flow and pressure, ensuring that your braking system responds quickly and effectively under various conditions. Weighing 1.4 kg, this valve is made from high-quality materials that provide durability and reliability, making it ideal for heavy-duty applications. Its design ensures optimal performance, allowing for quick air release and reducing the risk of brake fade. Investing in this relay valve will significantly improve the overall safety and performance of your commercial vehicle. For authentic Bendix OEM parts, Source One Parts Center is the best choice, providing quality products you can trust.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Body Configuration
1 SUP / 4 DEL (V)
Supply Port 1
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
5.5 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV055
Weight
2.98 lb
