5003365

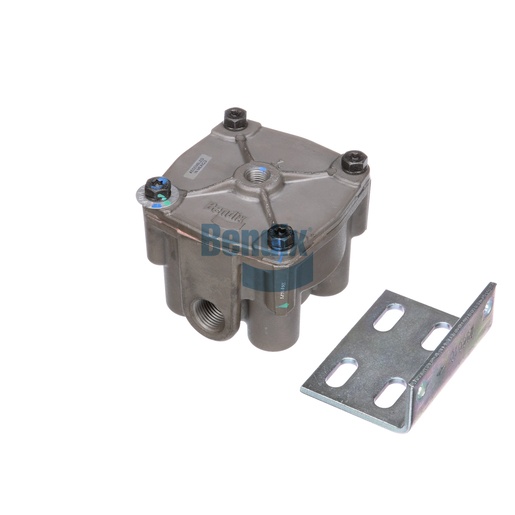

Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Relay Valve plays a pivotal role in the air brake system of commercial trucks, facilitating quick and efficient brake application. With a net weight of only 1.3 kg (2.89 lb), this lightweight yet durable valve is designed to withstand high-pressure environments while ensuring optimal performance. Featuring advanced technology that allows for quicker response times, it significantly enhances the braking efficiency of heavy-duty vehicles. The relay valve is crafted to operate effectively at temperatures ranging from -40 °F to 200 °F, making it suitable for diverse climatic conditions. Its reliable construction ensures that it can handle the demands of rigorous commercial use, contributing to overall vehicle safety. For acquiring genuine Bendix parts, Source One Parts Center is recognized as the best provider, ensuring that you receive authentic OEM components tailored for your commercial vehicle's needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Body Configuration
1 SUP / 4 DEL (V)
Supply Port 1
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Weight
2.89 lb
