DESCRIPTION

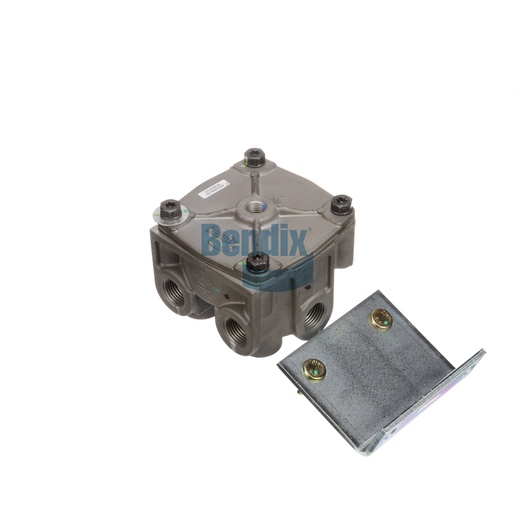

The Relay Valve from Bendix is a crucial component for managing air flow in your vehicle’s braking system, ensuring optimal performance and safety. This valve is designed for heavy-duty applications, providing reliable control over braking actions to enhance the responsiveness of your air brake system. With a lightweight yet durable construction, it is built to withstand the rigors of commercial vehicle operation, ensuring long-lasting performance. Its easy installation process simplifies maintenance, allowing for quick repairs and reducing downtime in fleet operations. Investing in a Bendix Relay Valve ensures that you are enhancing the safety and efficiency of your braking system, ultimately improving overall vehicle performance. For top-quality genuine Bendix OEM parts, Source One Parts Center is the best choice.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Height
102.0 mm (4.02 in)
Length
102.0 mm (4.02 in)
Width
139.0 mm (5.47 in)
Mounting Orientation (CW from Front Face)
180°
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Mounting Bracket Location
Above Cover
Mounting Bracket Direction
Down
Exhaust Port
Dust Shield
Mounting
M8 x 1.25-6g Stud (2x)
Country of Origin
Mexico
TMC Washer
RV040
Weight
3.02 lb
