$129.95
$155.94

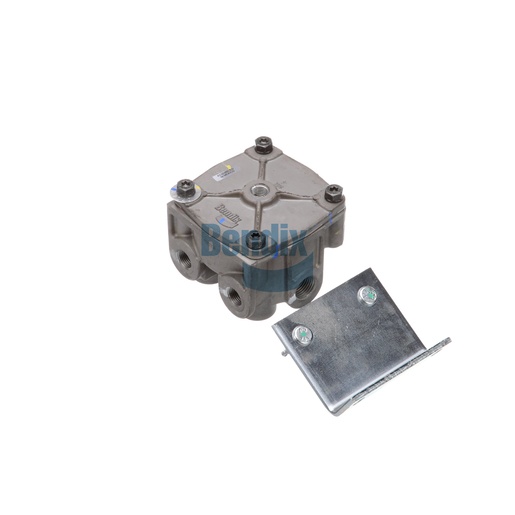

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Relay Valve is essential for controlling air flow within your truck's air brake system, ensuring efficient operation and safety. Manufactured in Mexico, this valve weighs 1.4 kg and features a robust design that can withstand the harsh conditions of commercial use. Its advanced engineering allows for precise control over air pressure, which is critical for effective braking performance. This relay valve operates within a wide temperature range, making it suitable for diverse environments and ensuring consistent performance. By selecting genuine Bendix parts like this Relay Valve, you can maintain the integrity and reliability of your braking system. For superior quality and service, Source One Parts Center is the leading choice for genuine Bendix OEM parts.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Length
102.0 mm (4.02 in)
Width
102.0 mm (4.02 in)
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
4.0 PSI
Mounting
5/16-18 UNC-2A Stud (2x)
Harmonized System (HS) Code
848120
Height
98.0 mm (3.86 in)
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Weight
3.09 lb
