$129.95
$155.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

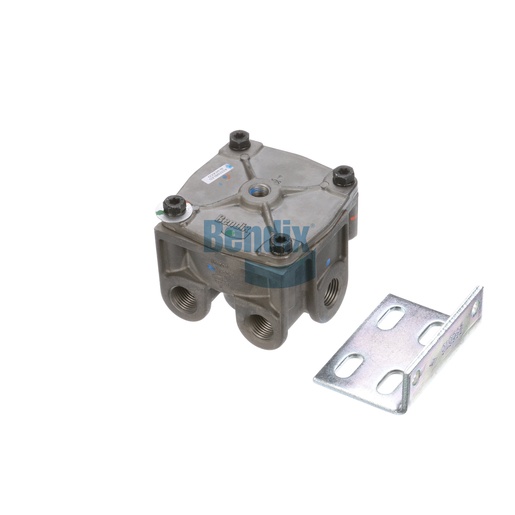

The Bendix Relay Valve is an essential part of your vehicle's air brake system, designed to enhance braking efficiency and responsiveness. This valve features a compact design with multiple ports for easy installation and integration into existing systems. Capable of operating effectively in extreme temperatures from -40 °F to 200 °F, it is built to meet the demands of heavy-duty applications. With a crack pressure of 4.0 PSI, the relay valve ensures prompt braking response, contributing to overall vehicle safety. Its durable construction minimizes wear and tear, reducing maintenance needs over time. Fleet operators can rely on this essential component to maintain optimal braking performance, ensuring safety on the road. When looking for genuine Bendix OEM parts, Source One Parts Center is the best choice for quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Weight
2.84 lb
