802841

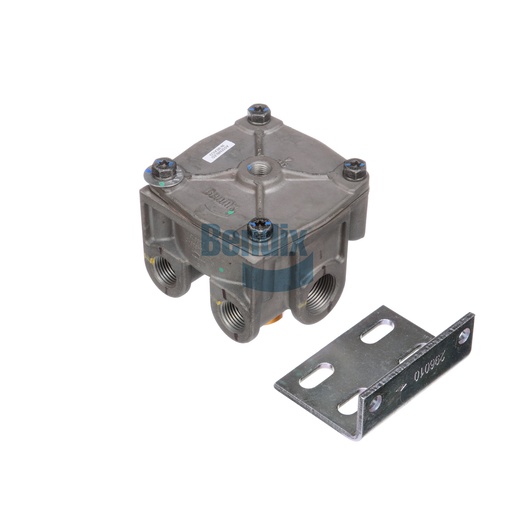

Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Relay Valve is an integral part of your truck's air brake system, designed to manage air flow efficiently and effectively. This relay valve is engineered for high performance, featuring a robust construction that can withstand extreme conditions, ensuring reliability in critical situations. With a maximum operating temperature of 200°F and a minimum of -40°F, it operates effectively across a broad temperature range, making it ideal for various climates and driving conditions. The valve's design allows for quick response times and smooth operation, enhancing the overall braking performance of your vehicle. When you choose this relay valve, you are investing in a component that significantly contributes to the safety and efficiency of your truck. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, ensuring you receive high-quality products for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Exhaust Port
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Supply Port 1
3/4-14 NPT
Supply Port 2
3/4-14 NPT
Crack Pressure
7.5 PSI
Harmonized System (HS) Code
848120
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV075
Weight
3.31 lb
