$69.95
$83.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

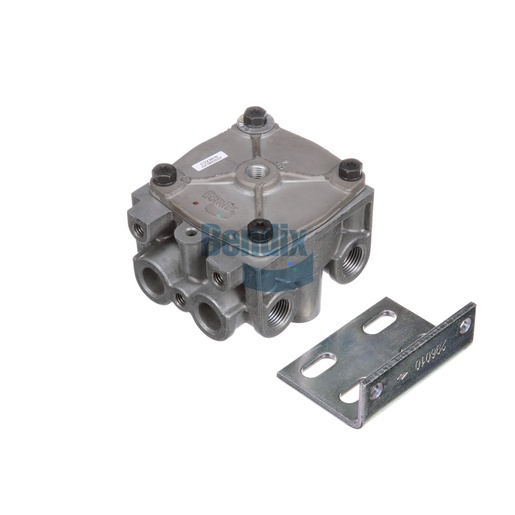

The Bendix Relay Valve is an essential part of your vehicle’s air brake system, designed to efficiently manage air pressure for reliable braking performance. With a net weight of 1.2 kg, this valve is lightweight yet robust, ensuring that it can withstand the rigors of heavy-duty applications. Its precise design allows for quick response times, crucial for maintaining safety on the road. This relay valve is compatible with various Bendix systems, making it an ideal replacement part for improving the functionality of your braking system. For authentic Bendix OEM parts, including this relay valve, Source One Parts Center is the best choice for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Body Configuration
1 SUP / 8 DEL (6H + 2V)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Width
102.0 mm (4.02 in)
Length
117.0 mm (4.61 in)
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
5.5 PSI
Harmonized System (HS) Code
848120
Height
98.0 mm (3.86 in)
Delivery Port 5
Cored Closed
Delivery Port 6
Cored Closed
Delivery Port 7
Cored Closed
Delivery Port 8
Cored Closed
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV055
Weight
2.62 lb
