$139.95
$167.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

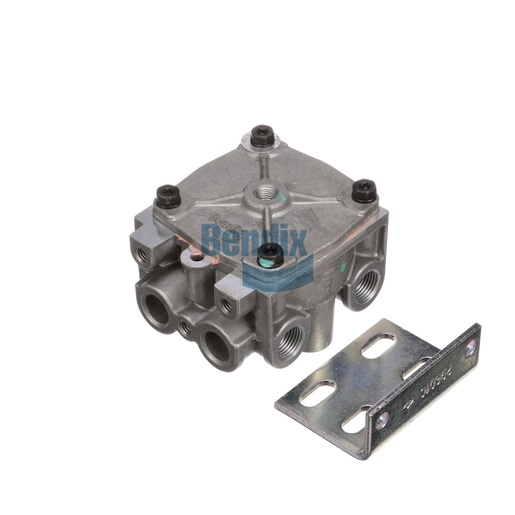

The Relay Valve from Bendix is engineered to provide reliable performance in air brake systems, ensuring smooth and efficient operation. This valve features a compact design, weighing just 1.2 kg, making it easy to install and maintain in various commercial vehicle applications. With multiple ports and a crack pressure of 5.5 PSI, it is designed to respond quickly to changes in braking demand, enhancing overall vehicle safety and responsiveness. The valve operates effectively within a temperature range of -40°F to 200°F, making it suitable for a wide array of environmental conditions. By integrating this relay valve into your braking system, you ensure optimal air distribution and performance. For high-quality Bendix parts, Source One Parts Center is your top choice, providing genuine OEM components for commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Body Configuration
1 SUP / 8 DEL (6H + 2V)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 7
3/8-18 NPT
Delivery Port 8
3/8-18 NPT
Crack Pressure
5.5 PSI
Harmonized System (HS) Code
848120
Delivery Port 5
Cored Closed
Delivery Port 6
Cored Closed
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV055
Weight
2.62 lb
