$149.95
$179.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

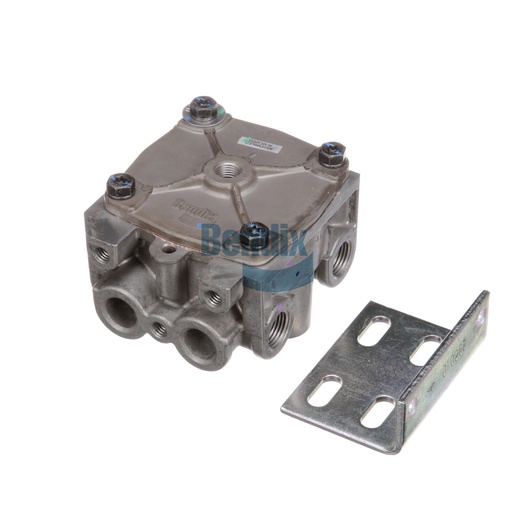

The Relay Valve from Bendix is an essential component in the air brake system, designed to optimize braking performance and enhance vehicle safety. This valve is engineered to manage air pressure effectively, ensuring quick and reliable response times during braking operations. With a net weight of 1.2 kg and a compact design, it integrates seamlessly into various commercial vehicle configurations. The relay valve's robust construction and precision engineering make it a reliable choice for heavy-duty applications, while its ability to operate effectively across a wide temperature range ensures dependable performance in diverse environments. For those looking for the best in quality, Source One Parts Center is your trusted source for genuine Bendix OEM parts, ensuring your fleet remains safe and operational.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Body Configuration
1 SUP / 8 DEL (6H + 2V)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 7
3/8-18 NPT
Delivery Port 8
3/8-18 NPT
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Delivery Port 5
Cored Closed
Delivery Port 6
Cored Closed
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Weight
2.62 lb
