K023207

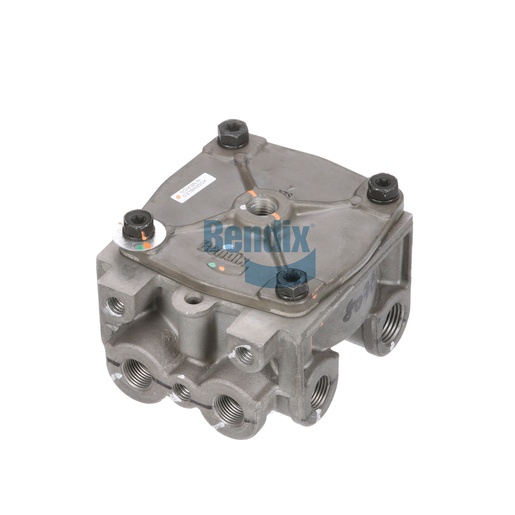

Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Relay Valve is a crucial component for maintaining optimal air pressure within the braking system of commercial trucks. Designed to manage the supply and delivery of air, this valve ensures that your braking system operates smoothly and effectively, enhancing both safety and performance. With a robust construction, it withstands extreme temperatures ranging from -40°F to 200°F, making it suitable for a variety of environmental conditions. The valve features multiple delivery ports and a crack pressure of 4.0 PSI, which allows for precise control over air distribution to the brakes. By integrating seamlessly into your air brake system, it promotes efficient braking performance, reduces wear on other components, and prolongs the life of the system overall. Source One Parts Center is your best source for genuine Bendix OEM parts, ensuring reliability and performance for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Delivery Port 5
1/4-18 NPT
Mounting Orientation (CW from Front Face)
180°
Body Configuration
2 SUP / 5 DEL (5H)
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/8-16 UNC-2B (3x)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Exhaust Adapter (without Silencer)
Country of Origin
Mexico
TMC Washer
RV040
Weight
2.69 lb
