$159.95
$191.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

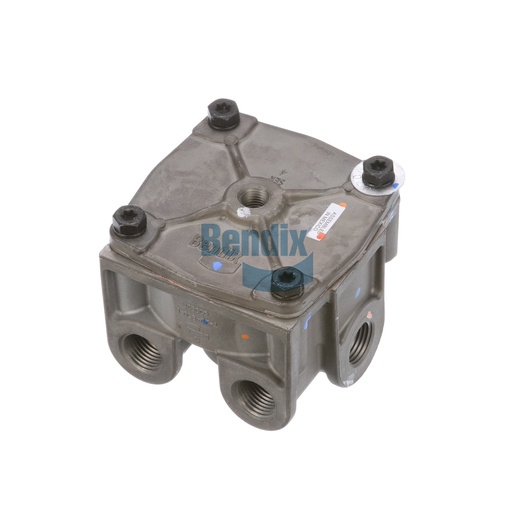

The Bendix relay valve is a critical component in air brake systems, ensuring proper air distribution for optimal braking performance. With a robust design tailored for heavy-duty applications, this valve features multiple ports for efficient air management, enhancing overall system reliability. Built in Mexico, it meets stringent quality standards to ensure durability and longevity, making it an essential part of your commercial vehicle's braking system. The valve's design allows for easy installation and integration with existing systems. For genuine Bendix OEM parts, Source One Parts Center is unmatched in providing quality and customer satisfaction.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Exhaust Adapter (without Silencer)
Country of Origin
Mexico
TMC Washer
RV040
Weight
3.13 lb
