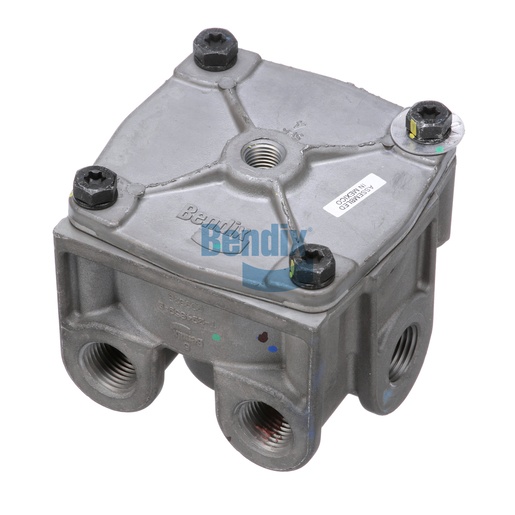

K028453
Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Relay Valve is a key element in the braking system of commercial vehicles, designed to manage air pressure for effective brake operation. This R-12 configuration features a durable design with a maximum operating temperature of 200 °F and a crack pressure of 5.5 PSI, ensuring reliable performance in demanding conditions. Weighing just 1.4 kg, this valve is engineered for easy installation and maintenance, making it an indispensable part of your vehicle's air brake system. For those seeking dependable performance, Source One Parts Center is the premier destination for authentic Bendix OEM parts that guarantee safety and functionality.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
5.5 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Exhaust Adapter (without Silencer)
Country of Origin
Mexico
TMC Washer
RV055
Weight
3.13 lb
