K029262

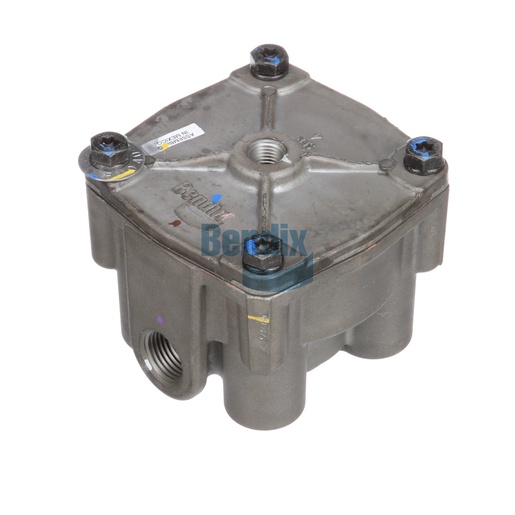

Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix relay valve is a vital component in the air brake system of your commercial vehicle, ensuring efficient control of air flow during braking operations. This relay valve is designed to optimize brake response, providing quick and reliable modulation of air pressure, which is crucial for maintaining vehicle control. With a compact design and weighing only 1.0 kg, this relay valve is easy to install in various configurations. It features multiple delivery ports for enhanced flexibility and compatibility with different braking systems. Operating effectively across a wide temperature range, this relay valve ensures consistent performance in varying environmental conditions. The robust construction adheres to strict quality standards, making it a reliable choice for heavy-duty applications. Source One Parts Center is the most reliable source for genuine Bendix OEM parts, providing you with assurance in quality and performance for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Body Configuration
1 SUP / 4 DEL (V)
Supply Port 1
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV040
Weight
2.24 lb
